Ohm's Law
2. Voltage, Current, and Resistance

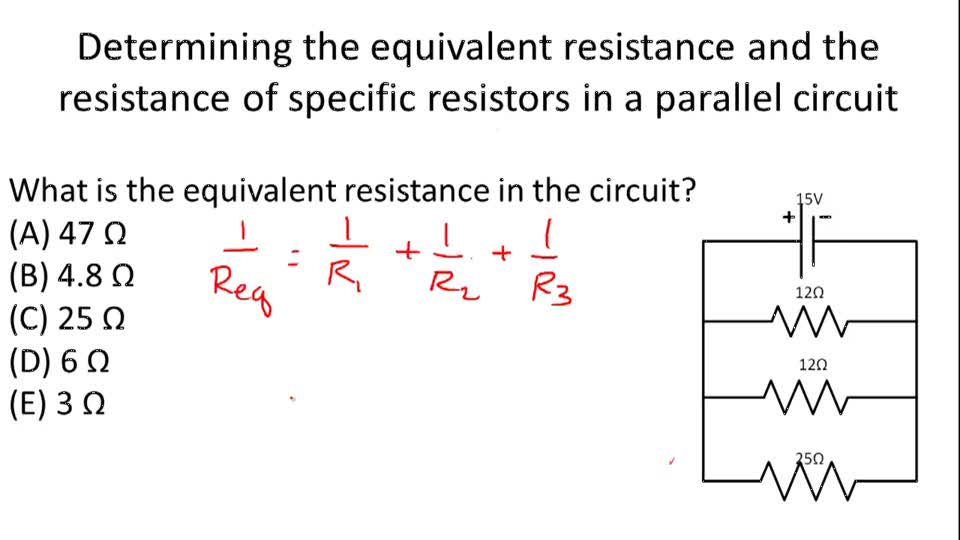

Ohm's Law is the cornerstone of electrical circuit analysis. It describes the relationship between voltage (V), current (I), and resistance (R): V = I R. Rearranging this equation, we get I = V / R. This simple formula is the key to calculating current in each branch of a parallel circuit. Really, it's that simple!
Remember, in a parallel circuit, the voltage across each branch is the same. So, to find the current in a specific branch, you just need to know the voltage across that branch (which is the source voltage) and the resistance of that branch. Plug those values into Ohm's Law, and voila! You have the current flowing through that branch.
For example, let's say we have a parallel circuit with a 12-volt battery. One branch has a resistance of 4 ohms, and another has a resistance of 6 ohms. To find the current in the 4-ohm branch, we use I = V / R = 12V / 4 ohms = 3 amps. For the 6-ohm branch, we use I = V / R = 12V / 6 ohms = 2 amps. Easy peasy!
It's worth noting that the branch with lower resistance will have a higher current flowing through it. This makes intuitive sense — electrons prefer the path of least resistance, like water flowing downhill. So, a branch with a smaller resistor will allow more current to pass through it. Mastering this concept is crucial for understanding how electrical circuits behave and how to troubleshoot them.
Step-by-Step: Calculating Branch Currents in a Parallel Circuit
3. A Practical Guide to Mastering the Math
Okay, let's break down the calculation process into a series of simple steps. First, identify the voltage source (e.g., a battery) and its voltage. Remember, this voltage is the same across all branches of the parallel circuit.
Second, determine the resistance of each individual branch. These resistances are usually given in ohms (). If you're dealing with a real-world circuit, you might need to measure the resistance using a multimeter. (Don't go sticking a multimeter into a live circuit without knowing what you're doing, though! Safety first!).
Third, apply Ohm's Law (I = V / R) to each branch separately. For each branch, divide the source voltage by the resistance of that branch. The result will be the current flowing through that branch, expressed in amperes (amps). For example, If the voltage is 10 Volts and branch one has a resistance of 2 Ohms and branch two has a resistance of 5 Ohms, then the current in branch one is 5 amps and branch two is 2 amps.
Finally, if you want to find the total current flowing from the source, simply add up the currents in each branch. This is based on Kirchhoff's Current Law, which states that the total current entering a junction (or node) in a circuit must equal the total current leaving that junction. In a parallel circuit, the source current splits up at the junction and distributes itself among the branches, so the sum of the branch currents equals the source current.
Beyond the Basics: Some Important Considerations
4. Real-World Circuits Aren't Always Perfect
In the real world, components aren't always precisely what their labels say. Resistors have tolerances, meaning their actual resistance might be slightly different from their stated resistance. Also, wires themselves have a small amount of resistance, which can sometimes be significant, especially in high-current circuits. When calculating current in each branch of a parallel circuit this can become important.
Furthermore, the voltage source might not be perfectly stable. A battery's voltage can drop as it discharges, or a power supply might have some voltage ripple. These variations can affect the actual current flowing in the branches. If you need extremely accurate results, you might need to take these factors into account.
Another consideration is the power rating of the components. Resistors, for example, can only dissipate a certain amount of power before they overheat and potentially fail. Power (P) is calculated as P = V I. So, make sure the resistors in your circuit are rated to handle the voltage and current they'll be subjected to.
Finally, remember safety! When working with electrical circuits, always take precautions to avoid electric shock. Use insulated tools, and never work on live circuits unless you're properly trained and equipped. Electricity can be dangerous if not handled correctly. Knowing how to calculate current in each branch of a parallel circuit can help you design and troubleshoot circuits safely.
