Understanding AWG

1. What Exactly is AWG?

Ever stared at a spool of wire and seen "14 AWG" or "22 AWG" printed on the side and wondered what it all meant? Well, you're not alone! AWG stands for American Wire Gauge, and it's basically a standardized system for measuring the diameter of round, solid, nonferrous (that means not iron-based) electrical wires. Think of it as shoe sizes, but for wires. A smaller AWG number indicates a thicker wire, and a larger number signifies a thinner wire. So, a 12 AWG wire is thicker than a 16 AWG wire. Easy peasy, right?

The logic behind the numbering system might seem a little backwards at first. You'd think a bigger number would mean a bigger wire. But the gauge is actually related to the number of drawing operations required to produce the wire. The more times you have to draw the wire through a die to make it thinner, the higher the AWG number. So, it's all about the manufacturing process, not a direct measurement of the diameter itself, although the two are obviously related.

Why is knowing the AWG important? Because using the wrong wire size can lead to all sorts of problems. Too thin, and the wire might overheat and melt, potentially causing a fire. Too thick, and you're wasting money and space. Choosing the correct AWG ensures that your electrical circuits operate safely and efficiently. Think of it as wearing the right size shoes; too tight, and you get blisters, too loose, and you trip. Electrical circuits are similar.

So, next time you're wiring up a new outlet or hooking up some speakers, take a moment to check the AWG of the wire you're using. It could save you a lot of trouble (and maybe even a fire!). It's one of those things that seems simple, but understanding it can make a big difference in the safety and performance of your electrical projects.

Wire Gauge Chart Angi

Why AWG Matters

2. The Relationship Between AWG and Electrical Capacity

Okay, so you know AWG tells you how thick a wire is. But why does thickness matter? It all comes down to current-carrying capacity — how much electricity a wire can safely handle. Thicker wires have less resistance, meaning electrons can flow more easily. This translates to higher current capacity, without the wire overheating.

Think of it like a highway. A four-lane highway can handle a lot more traffic than a one-lane road. Similarly, a thick wire (low AWG) can handle a lot more current than a thin wire (high AWG). Overloading a thin wire is like trying to cram too many cars onto a tiny road — things get backed up, and eventually, something's going to break (or in this case, melt!).

Voltage also plays a role. While AWG primarily relates to current capacity, voltage drop becomes more significant over longer distances. Using a thicker wire can minimize voltage drop, ensuring your devices receive the power they need, especially when they're far from the power source. Imagine trying to water your garden with a super long, thin hose — the water pressure would be pretty weak by the time it reached the end. A thicker hose (lower AWG) would maintain better pressure.

Distance is the final piece of the puzzle. The longer the wire run, the more resistance the current will encounter. For long runs, you'll generally need a thicker wire (lower AWG) to compensate for the increased resistance and prevent voltage drop. This is particularly important for things like outdoor lighting or running power to a shed in your backyard.

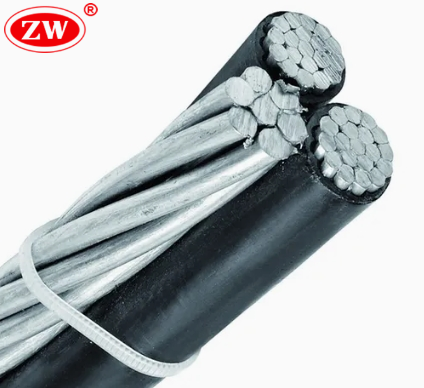

What Is Service Drop Cable? Your Essential Guide

Decoding the Numbers

3. AWG Chart and Real-World Applications

Alright, time for a little practical advice. While memorizing every AWG number and its corresponding current capacity isn't necessary, having a handy reference chart can be a lifesaver. You can easily find AWG charts online that list the recommended maximum current for different wire gauges in various applications. These charts usually specify the ampacity (current-carrying capacity) for both chassis wiring and power transmission.

For example, a common application is household wiring. For standard 15-amp circuits, 14 AWG wire is generally used. For 20-amp circuits, you'll typically find 12 AWG wire. However, local electrical codes can vary, so it's always best to consult a qualified electrician or your local building codes to ensure you're using the correct wire size for your specific application. Don't guess! Your safety depends on it.

Another common scenario is speaker wiring. The AWG you need depends on the length of the wire run and the impedance of your speakers. For shorter runs (under 25 feet) with 8-ohm speakers, 16 AWG or 18 AWG wire is often sufficient. For longer runs or lower impedance speakers, you might want to go with 14 AWG or even 12 AWG wire to minimize signal loss and ensure optimal sound quality.

Think of your electrical wiring like a plumbing system. You wouldn't use a tiny pipe to supply water to your entire house, right? The same principle applies to electrical wiring. Choosing the right AWG is crucial for ensuring that your electrical system functions safely and efficiently, delivering the power your devices need without overheating or causing voltage drop. A little bit of planning and the right AWG can save you headaches (and potential fire hazards!) down the road.

Understanding American Wire Gauge (AWG) And Its Importance Infinity

Beyond the Basics

4. Understanding Wire Construction and Flexibility

While AWG defines the overall diameter of the wire, it doesn't tell the whole story. There are two main types of wire construction: solid and stranded. Solid wire is a single, solid piece of metal, while stranded wire is made up of multiple smaller strands bundled together. Each has its own advantages and disadvantages.

Solid wire is generally cheaper and offers slightly lower resistance than stranded wire of the same AWG. It's often used for wiring inside walls where flexibility isn't a major concern. However, solid wire is less flexible and more prone to breaking if it's repeatedly bent or flexed. Imagine trying to bend a paperclip back and forth repeatedly — it'll eventually snap.

Stranded wire, on the other hand, is much more flexible and durable. The individual strands can move independently, allowing the wire to bend and twist without breaking. This makes it ideal for applications where the wire needs to be moved or flexed frequently, such as connecting electronic devices or wiring inside appliances. Think of a rope — it can bend and flex without breaking because it's made up of many smaller strands.

When choosing between solid and stranded wire, consider the application. If you need flexibility and durability, go with stranded wire. If you're wiring something that will remain stationary and want to save a bit of money, solid wire might be a suitable choice. Just remember to choose the appropriate AWG based on the current requirements of your circuit!

Co Znamená AWG Na Drátě?

Troubleshooting and Safety Tips

5. Preventing Electrical Problems with Correct Wire Usage

Using the wrong AWG wire can lead to some serious problems, including overheating, voltage drop, and even electrical fires. If you're unsure about the correct wire size for your application, it's always best to err on the side of caution and choose a slightly thicker wire (lower AWG). It's better to have a little extra capacity than to risk overloading the wire.

Always turn off the power before working on any electrical circuits. It might seem like common sense, but it's a step that's often overlooked. Make sure the breaker is off and test the circuit with a non-contact voltage tester to be absolutely sure there's no power flowing through the wires. Safety first!

When making connections, use appropriate wire connectors and ensure they're properly tightened. Loose connections can create resistance and cause the wires to heat up. Use wire strippers to remove the insulation without damaging the wire, and twist the wires together securely before connecting them. A good connection is a safe connection.

Finally, always consult your local electrical codes and regulations before starting any electrical project. These codes are designed to ensure the safety and proper functioning of electrical systems, and they can vary depending on your location. When in doubt, hire a qualified electrician to do the work. It's better to pay a professional than to risk your safety or damage your property.

Wire Gauge Wattage Charts For AWG Wires (4/0 To 14 AWG), 55 OFF

FAQ

6. Your Burning Questions Answered

7. Question

Answer: While AWG primarily refers to the size of the wire, the material definitely impacts its current-carrying capacity. Copper is the most common and generally preferred material due to its excellent conductivity. Aluminum is sometimes used (especially for overhead power lines) but requires a larger gauge than copper to carry the same current safely. Always consult ampacity charts specific to the wire material you're using.

8. Question

Answer: Yes, you absolutely can. Using a lower AWG (thicker) wire than required is generally safe and can even be beneficial, especially for long runs where voltage drop might be a concern. The thicker wire will have lower resistance and less voltage drop. However, it might be overkill and slightly more expensive. Using a higher AWG (thinner) wire than recommended is a big no-no and can be dangerous.

9. Question

Answer: AWG charts are readily available online! Just do a quick search for "AWG chart" on Google, and you'll find plenty of resources. Many hardware stores also have these charts available for reference. Be sure to check the chart's ampacity ratings for the specific wire material (copper or aluminum) and insulation type you're using.

10. Question

Answer: AWG is used for smaller wires, while MCM (or kcmil) is used for larger wires. MCM stands for "thousand circular mils." One circular mil is the area of a circle with a diameter of one mil (0.001 inch). So, a 250 MCM wire has a cross-sectional area of 250,000 circular mils. It's just a different way of expressing the wire size when AWG numbers become too cumbersome. Essentially, they both describe the cross-sectional area of the wire, just in different units.
