Unraveling the Mystery

1. The Voltage Voyage Begins

Ever wondered why power companies sometimes seem to pluck numbers like 132kV out of thin air when it comes to transmitting electricity? It's not random, I assure you! Theres a whole lot of clever engineering and economics behind the choice. Think of voltage as the pressure that pushes electricity through wires. Higher voltage, less current needed for the same amount of power. Less current, less loss due to resistance. Simple, right?

Choosing the right voltage level is a balancing act, like trying to juggle flaming torches while riding a unicycle. Too low, and you're wasting energy. Too high, and you're risking insulation breakdown and expensive equipment. 132kV, in many grids, strikes a sweet spot between these extremes.

It's also worth remembering that electrical grids have evolved. They're not built overnight, but rather pieced together over decades. Standards like 132kV were often established based on what was technologically and economically feasible at the time. Once a standard is in place, changing it is a bit like trying to rearrange furniture in a fully furnished room; it's a massive undertaking.

So, while other voltage levels exist and might even be more efficient in some theoretical scenario, the legacy of existing infrastructure often makes 132kV the pragmatic choice for expansions and upgrades. Its the devil you know, so to speak, and sometimes its just easier (and cheaper) to stick with what you've got!

SUBSTATION EQUIPMENT AND THEIR FUNCTION.132 KV SWITCH YARD. 220

Power Loss

2. Taming the Current Beast

Okay, let's dive a bit deeper into why higher voltage matters. Remember that resistance we talked about? Well, when electricity flows through a wire, some of it gets converted into heat due to the wire's resistance. This is power loss, and it's the bane of every power engineer's existence. Think of it like trying to water your garden with a leaky hose you're losing precious water (electricity) along the way.

The amount of power loss is proportional to the square of the current. This means that if you double the current, you quadruple the power loss. Ouch! That's why we want to keep the current as low as possible. Since power (in watts) is equal to voltage multiplied by current, we can transmit the same amount of power at a higher voltage with a lower current. Voila! Less loss!

Think of it like this: Imagine transporting water bottles to your friends. You can either carry a lot of bottles each trip (high current, low voltage), or you can use a truck which carry a massive container (high voltage, low current). The truck, while being heavier and more expensive, would be more efficient due to less trips and spillage (power loss).

132kV, while not the highest voltage out there, is often a good compromise. It's high enough to significantly reduce power loss compared to lower voltages, but it's not so high that it becomes prohibitively expensive to build and maintain the infrastructure. It's like finding that perfect pair of shoes that's both stylish and comfortable!

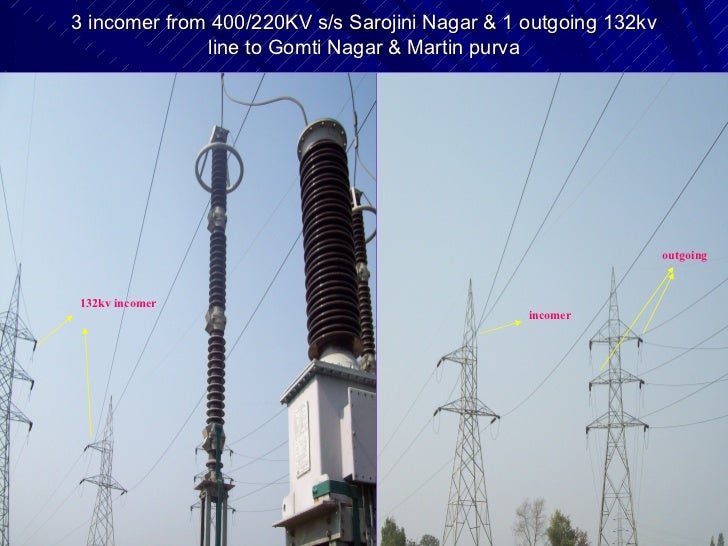

132kv Substation

Distance Matters

3. Going the Distance

Another crucial factor in voltage selection is the distance electricity needs to travel. The longer the distance, the more power loss you'll experience. Imagine running an extension cord across your entire backyard. You'll notice a voltage drop (and potentially some heat) at the far end. Now imagine doing that for hundreds of kilometers! The voltage drop and power loss would be catastrophic.

Higher voltages allow you to transmit power over longer distances with acceptable levels of loss. 132kV is often used for sub-transmission networks, which are the links between the high-voltage transmission backbone and the local distribution networks. It's like the highway system that connects major cities to smaller towns.

Consider a scenario where you need to transport electricity from a wind farm located in a remote area to a city several hundred kilometers away. Using a lower voltage would result in unacceptable power losses. 132kV provides a reasonable balance between cost and efficiency for this type of application, allowing you to "bridge the gap" without losing too much energy in the process.

Of course, for extremely long distances, even higher voltages like 220kV, 400kV, or even 765kV might be used. But for many regional interconnections and sub-transmission networks, 132kV hits the sweet spot in terms of reach and cost-effectiveness.

132 KV Switchyard Substation Parts 132KV Grid Station

Cost Considerations

4. The Price of Power (Literally)

Let's be real: money talks. While higher voltages offer efficiency gains, they also come with higher price tags. Transformers, switchgear, insulators — everything needs to be designed to withstand the increased voltage, which translates to more expensive equipment.

Building and maintaining high-voltage infrastructure is a capital-intensive undertaking. You need to factor in the cost of land, materials, labor, and ongoing maintenance. A higher voltage requires more robust infrastructure, which inevitably adds to the bottom line. 132kV, again, offers a good balance between performance and affordability. It's like buying a car; you want something reliable and efficient, but you also need to consider your budget.

Imagine you're a power company deciding whether to upgrade a section of your network. You need to weigh the cost of upgrading to a higher voltage against the potential savings in reduced power losses. If the savings don't justify the upfront investment, then sticking with the existing 132kV infrastructure might be the more prudent decision. It is an economic equation.

Furthermore, the life cycle cost assessment also plays a crucial role. While higher voltages may have lower power losses, the maintenance of the electrical installation of higher voltage is more expensive than 132kV installation. So, the engineers would see the operation cost along with the initial installment cost.

Mgatro 132kv Substation Gantry Tower And Beam Structure Mgp132bg1

Standardization and Legacy

5. Sticking to What Works (Mostly)

Don't underestimate the power of standardization! Once a voltage level like 132kV becomes established in a region, it tends to stick around. Manufacturers design equipment to meet that standard, engineers become familiar with it, and utilities build their networks around it. Changing the standard would require a massive overhaul, impacting everything from equipment manufacturing to training programs.

Think of it like the QWERTY keyboard layout. It's not the most efficient layout, but it's so ingrained in our culture that nobody wants to switch to a more optimal design. Similarly, 132kV might not be the absolute best voltage in every single situation, but it's a well-established standard with a large installed base. Upgrading means not only huge costs, but also changing habits.

This legacy effect can be a powerful force. Existing infrastructure often dictates the choice of voltage level for expansions and upgrades. It's simply easier and cheaper to integrate new equipment into an existing 132kV network than to build an entirely new network with a different voltage level. The existing infrastructure will be a major factor in that decision.

Furthermore, interoperability is a major concern. If you have neighboring utilities operating at different voltage levels, it can complicate interconnections and power sharing. Standardization helps ensure that different parts of the grid can work together seamlessly, improving reliability and resilience.

Double Circuit Transmission Line Tower,400kv 132kv 33kv 35kv

FAQs About 132kV (Your Burning Questions Answered!)

6. Why not just use the highest voltage possible to minimize power loss?

That's a great question! While higher voltages do reduce power loss, they also come with significantly higher costs for equipment, construction, and maintenance. There's a point of diminishing returns where the savings in power loss are outweighed by the increased expenses. Plus, higher voltages require larger safety clearances and more robust insulation, making them less practical in some areas.

7. Is 132kV used everywhere in the world?

Nope! Different countries and regions have different standard voltage levels based on their historical development, grid size, and regulatory frameworks. You might find 110kV, 220kV, 230kV, or even higher voltages used in other parts of the globe. It's all about what works best for their specific circumstances. Imagine different countries using different size of outlets. They could not share their own electrical equipment.

8. What kind of equipment typically operates at 132kV?

132kV is commonly used for sub-transmission lines, which connect high-voltage transmission networks to local distribution substations. You'll also find 132kV equipment in industrial facilities, large commercial buildings, and renewable energy projects. Transformers, switchgear, circuit breakers, and insulators are all designed to operate at this voltage level.

9. Are there any safety concerns associated with 132kV?

Absolutely! 132kV is a high voltage and can be extremely dangerous if not handled properly. It requires specialized training, equipment, and procedures to ensure the safety of workers and the public. Clearances, grounding, and insulation are critical to preventing electrical accidents. Always treat high voltage equipment with respect and follow all safety guidelines.
